22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm

Brand Name : Sussman

Model Number : SS-CT

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/ month

Delivery Time : 60 working days after deposit

Packaging Details : Standard package with film, plastic and steel wire. (or customized)

Material thickness : 0.2--4mm

Material : Galvanized steel

Forming speed : 8--10 m/min

Roller station : About 20 stations

Main motor power : 22KW

Roller material : Roller material

Contact Now

Cable tray roll forming machine

Machine Component List


5 Ton Manual De-coiler

1 set


Levelling device

1 set


Servo Feeding device

1 set


Press Machine JH-200

1 set


Main Roll Forming Machine

1 set


PLC Control box

1 unit


Hydraulic Station

1 unit


Cutting device

1 unit


Punching mould

1 unit


Out table

2 units


Main Specifications

1. material width: 100-600mm

2. material thickness: 0.4-2.5mm

3. uncoiler: 5 tons manual

4. rolling speed: 8--10 m/min

5. roller stations: About 20 stations

6. roller material: GCr15 quench treatment

7. main motor power : 22Kw

8. cutting material: Cr15 with quench treatment

9. hydraulic cutting power: 5Kw

10. power supply: 380V, 50Hz, 3 Phase

11. control system: PLC Panasonic

Cable Tray Profile Drawings


22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm




22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm




22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm


22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm


22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm

Advantage of roll forming machine


1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Working Flow

Decoiler- Levelling- Servo Feeding- Punching- Main Roll Forming - Cutting- Runout Table
22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm

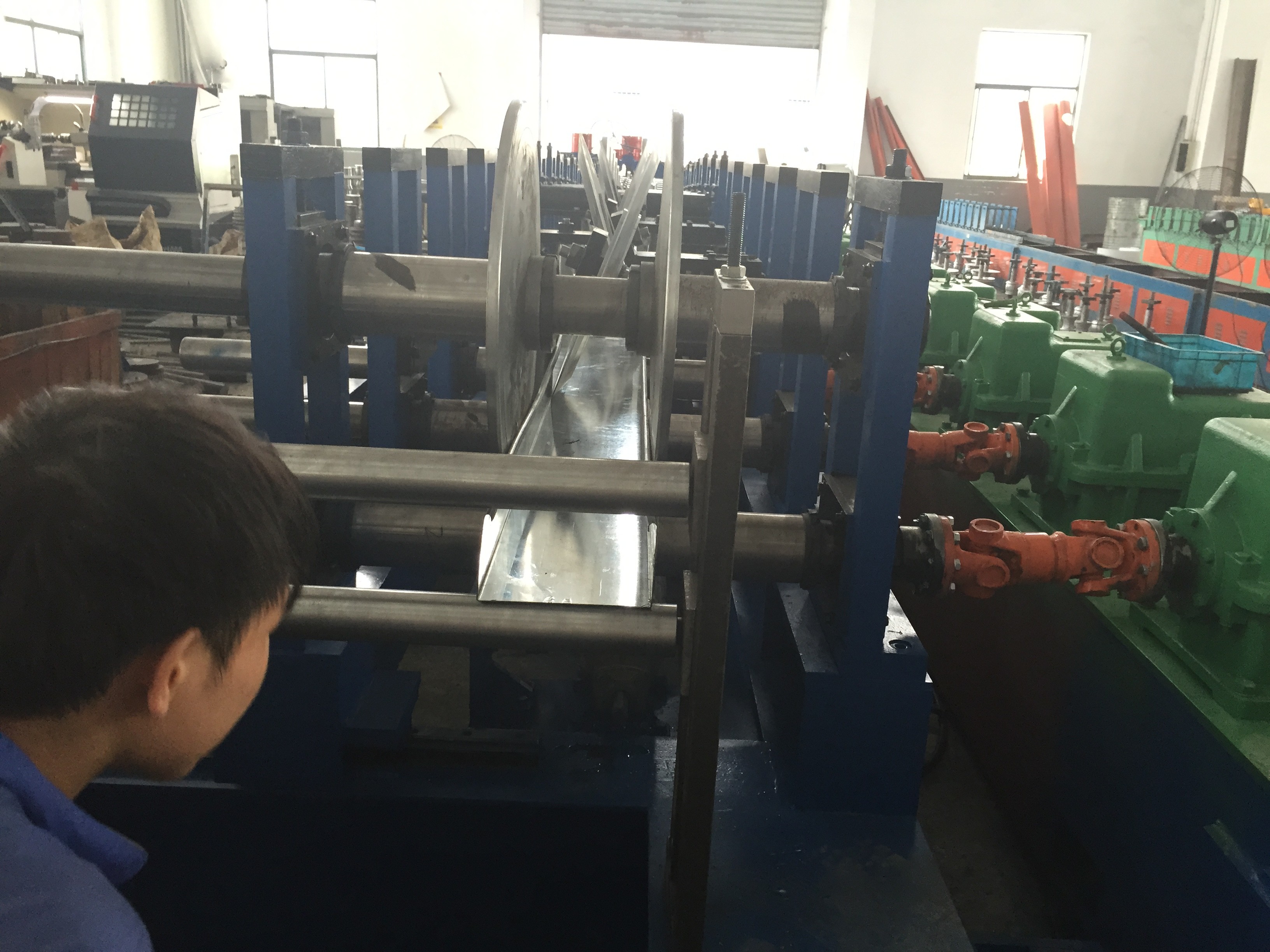

Machine Photo

22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm





22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm




22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm



22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm

Loading pictures
22kw Cable Tray Protection Roll Forming Machinery Material Thickness 0.2 - 4mm
